3rd Gen 5.9 (silver bullet in pictures) turbo swap for a 6.7

[dodgeram082500]

This may already be here but....
ok guys kinda going to give you guys a rundown of things your going to need to do to get this going bare with me I have never done this before
a few things your going to need for this type of swap t4 mainifold turbo to a t3
5.9 exhaust manifold
5.9 exhaust elbow
2 plugs for the block and coolant line
a T3 manifold gasket
a 3/4 heater hose for the oil return line extention (thanks bthanks worked great) will be a very tight fit
2 bolts for the turbo in case your turbo doesnt come with any
one other person at least this isnt really a one person job the turboes are pretty heavy
I know I am forgetting something so you guys are welcome to tell me what it is

We had to plug the the coolant lines for the old VGT turbo got mine from wally at fte diesel one in the coolant tube seen here on the fire wall and the other in the side of the block

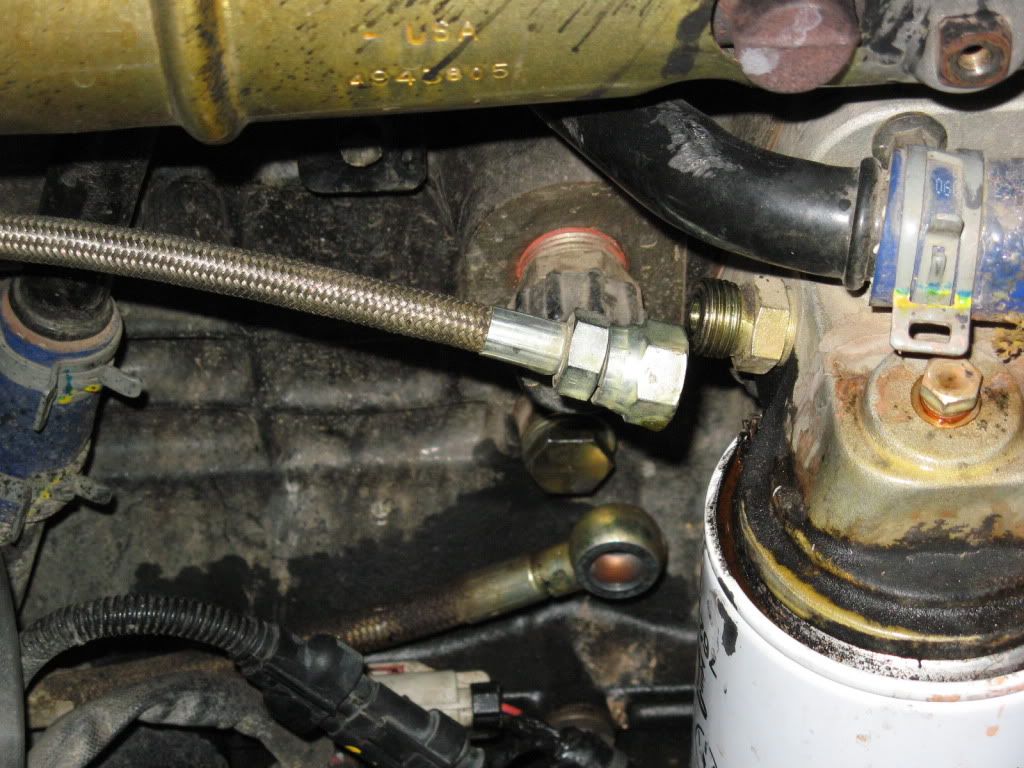

Also you need to unplug and remove the oil line from the turbo to the oil filter housing

here you can see the plug in the coolant line up against the firewall


in these pics you can see the coolant line bracket bolt we had to remove these in order to have enough room to get the turbo out

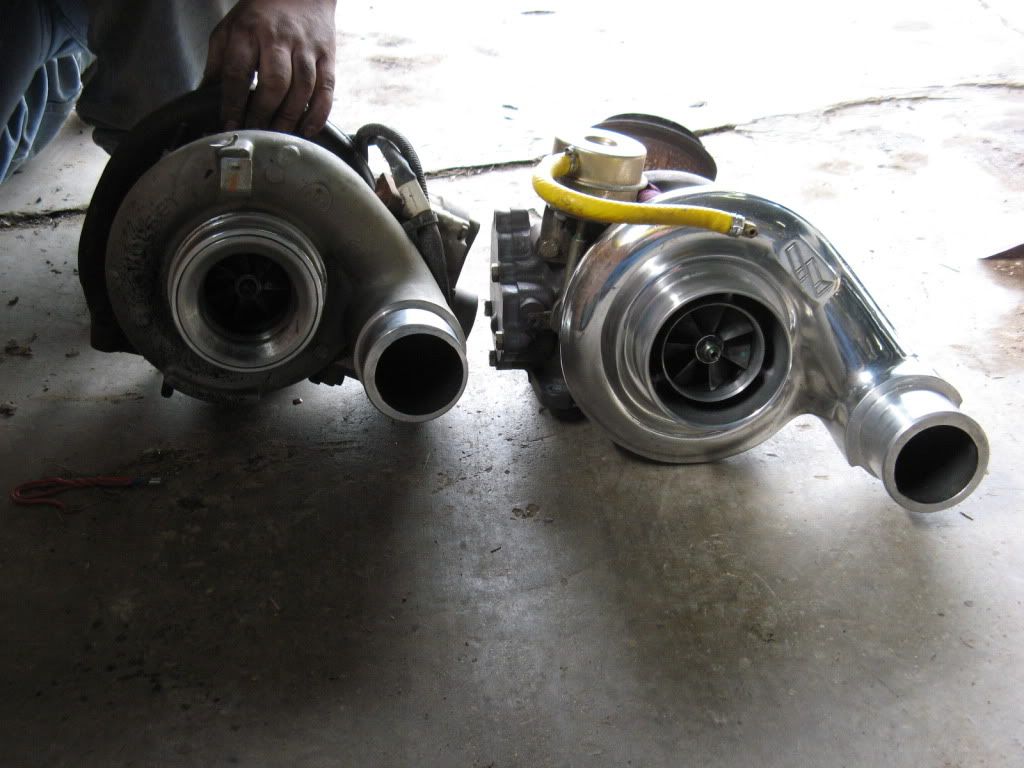

here is a side by side

block after manifold is removed

manifold side by side view

yeah this gasket wont work so we had to make one works great thus far

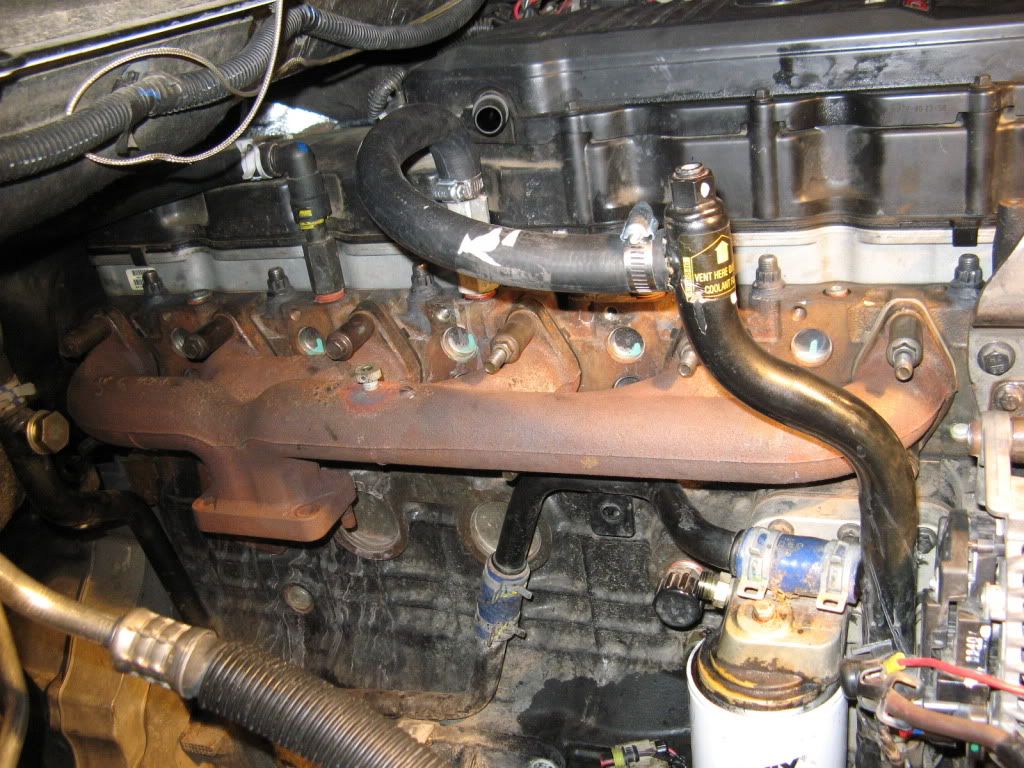

5.9 manifold installed

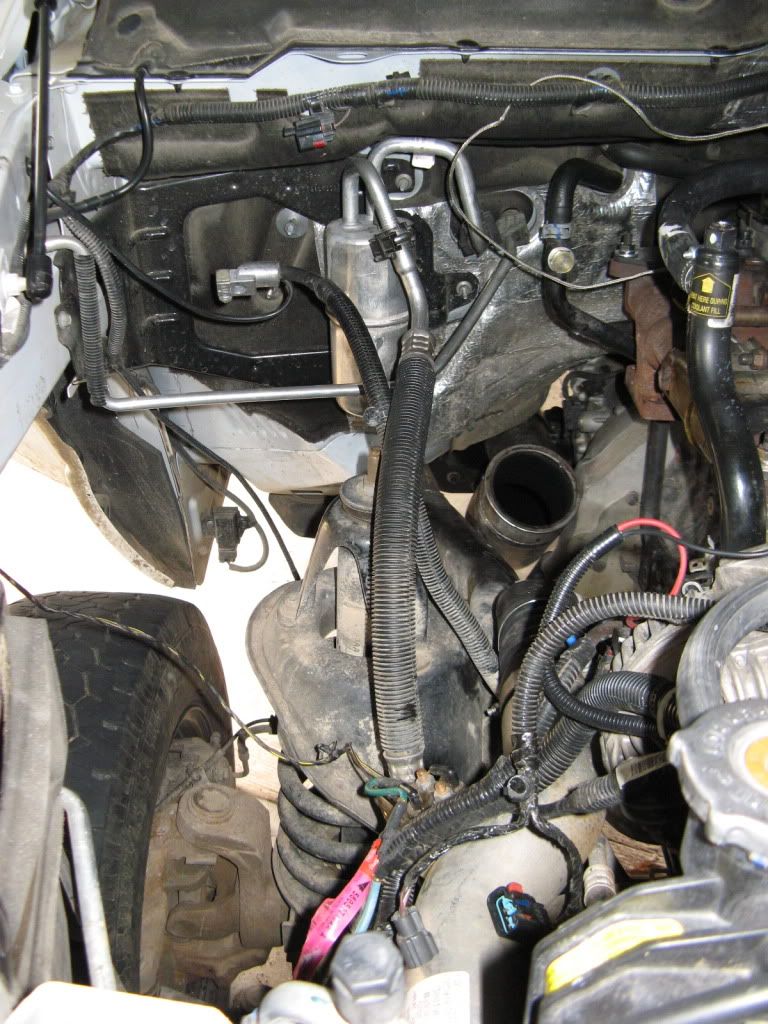

side view of the truck as you can see we removed the inner fender well for easier access also removed the batt box for more room

you can see the 5.9 manifold has two studs in where the 6.7 has one so another words if your turbo doesnt have bolts with you will need them I happened to have some laying around that worked

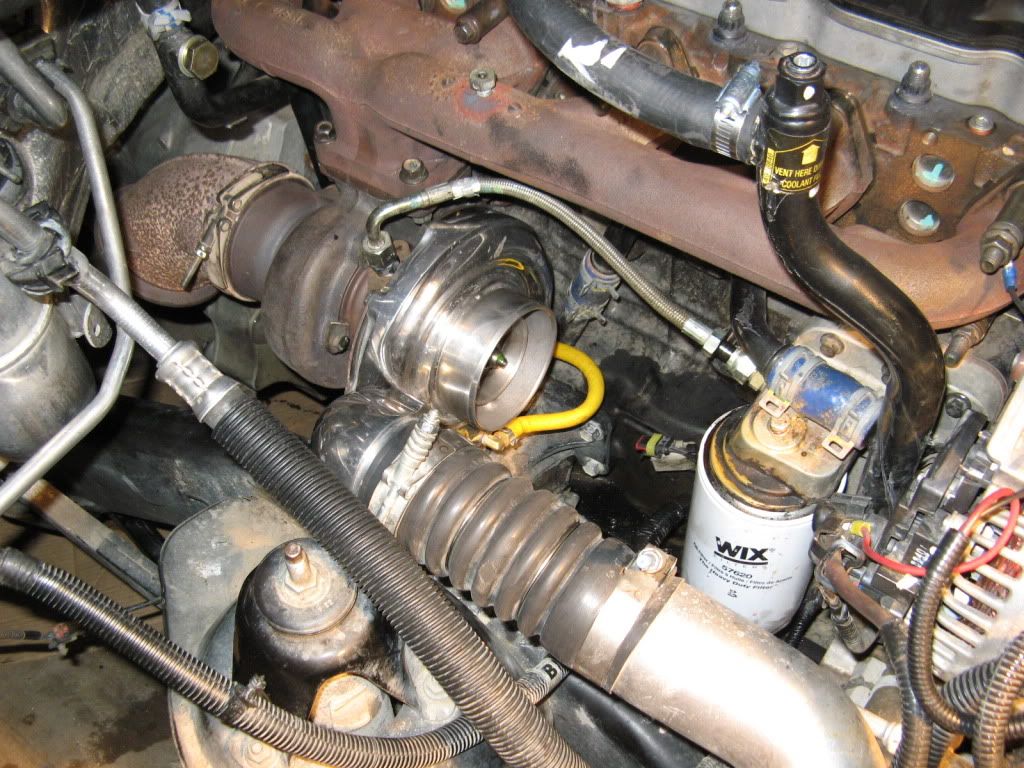

the turbo installed for you guys thinking about running silver bullets this things wastegate just barely cleared

install your boost booat again and put everything back together and your good to go
Big thanks to EXTBLUERAM for helping and pretty much doing the hard part. Also Big thanks to Bthanks, HDR DIESEL, FTE DIESEL, and everyones help on this forum.

 0 Comment(s)

[CUMMINS FIREFIGHTER]

Looks good, clean install, I want to to a s472 second gen

 0 Comment(s)

[IG Operations]

That's awesome. Great write up. And yes very clean. As well as thorough and easy to understand

 0 Comment(s)

[keepcoalalive]

K8JiU

 0 Comment(s)

[SickCummins]

Have you had any issues since installing the 5.9 setup on a 6.7? Pretty sure gonna toss my stage 1 for 5.9 on my 6.7. How does it sound? Did u have diesel ehaust brake and have to do
anything to retain that?
